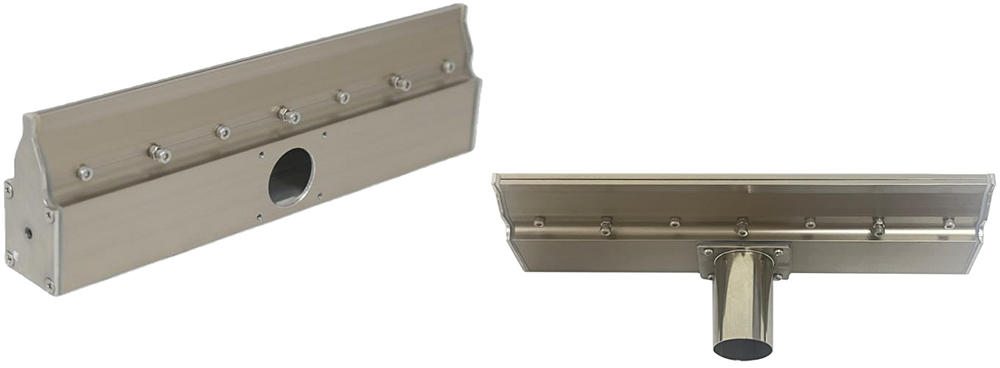

Compact 42W × 85H mm body — the Type-D model fits production equipment where a larger adjustable strong air knife is difficult to install.
Wide 0.1–4mm adjustable air knife edge — operators can tune the outlet gap for light surface drying, stronger water removal, or dust blowing without replacing the blade.
Three inlet layouts are supported: air inlet from both ends, from the side, or from the bottom. This helps the air pipe avoid frames, guards, conveyors, and nearby equipment.
Φ32 / Φ38 / Φ45 inlet pipe options give practical matching space for different blower or compressed-air pipework designs.
Factory-customizable length 50–4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support — each unit can be built according to the customer's drawing or application requirement.
Product Key Selling Points
• Compact 42W × 85H mm body — the Type-D model fits production equipment where a larger adjustable strong air knife is difficult to install.
• Wide 0.1–4mm adjustable air knife edge — operators can tune the outlet gap for light surface drying, stronger water removal, or dust blowing without replacing the blade.
• Three inlet layouts are supported: air inlet from both ends, from the side, or from the bottom. This helps the air pipe avoid frames, guards, conveyors, and nearby equipment.
• Φ32 / Φ38 / Φ45 inlet pipe options give practical matching space for different blower or compressed-air pipework designs.
• Factory-customizable length 50–4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support — each unit can be built according to the customer's drawing or application requirement.
Product Structure & Working Principle

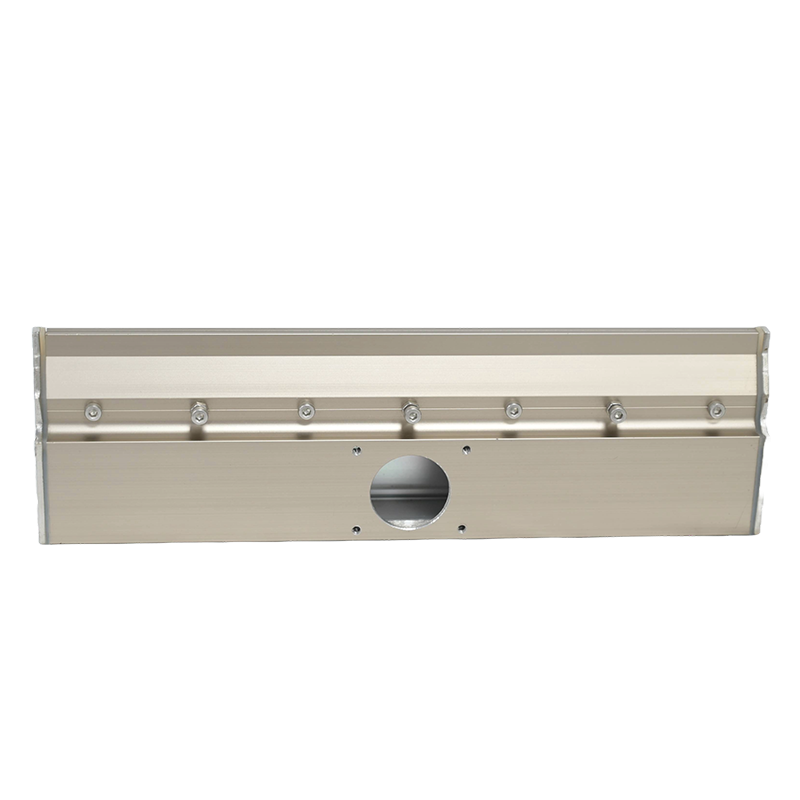

• The 42W × 85H mm aluminium alloy extrusion forms a compact air chamber. It keeps the body small while still providing enough internal volume for stable airflow distribution.

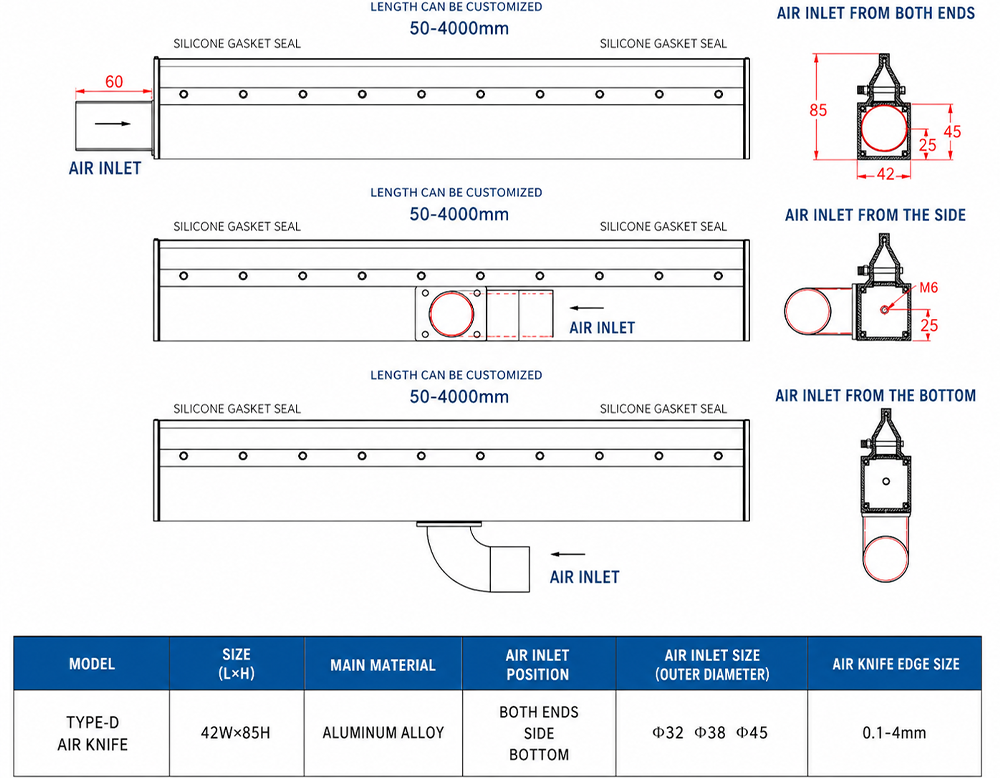

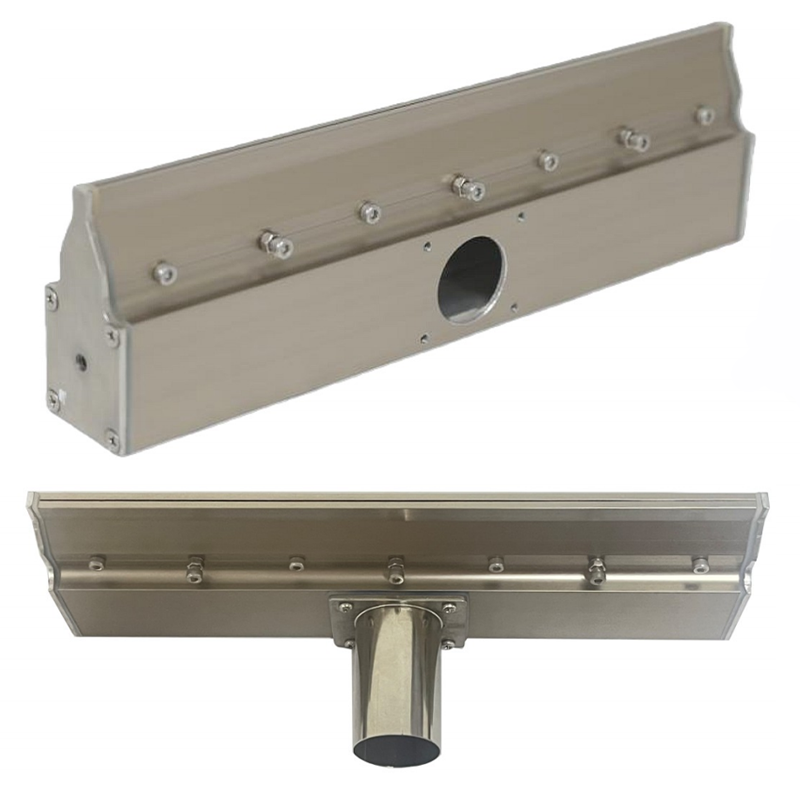

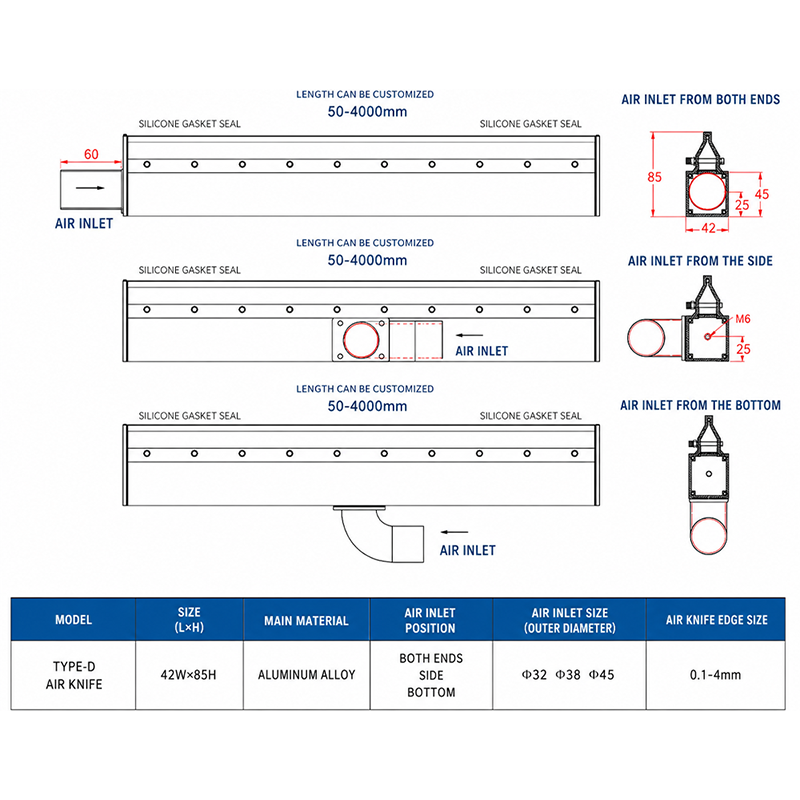

• Air can enter through both ends, the M6 side inlet structure, or the bottom inlet. The correct inlet direction should be selected according to machine space and pipe routing.
• The internal chamber supports customized blade lengths from 50–4000 mm. On longer knives, the inlet layout should be chosen to keep airflow uniform across the working width.
• After entering the chamber, air is equalized and then guided toward the outlet edge. The narrow outlet forms a continuous sheet of high-speed air for drying, cleaning, or separating surface liquid.
• The 0.1–4mm outlet gap can be adjusted by the edge screws. Adjustment can be made on site to match the required air volume and impact force without disassembling the air knife body.
• Both ends use High-Temp Silicone Gasket Seal (≤250°C) to reduce leakage at the termination points and keep the outlet airflow focused along the working length.

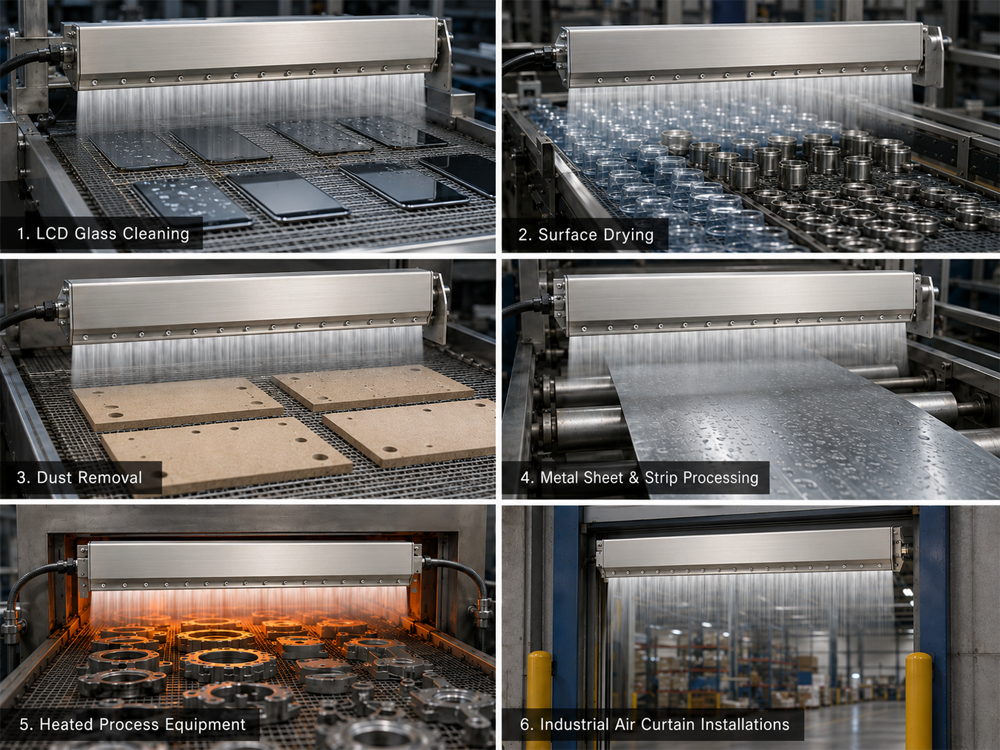

Application Scenarios
The Aluminum Air Knife D is suitable for compact and medium-width equipment that needs adjustable airflow strength and flexible inlet routing.
• Surface Drying — removes water films from bottles, machined parts, plastic components, and cleaned products before packing or the next process.
• PCB Cleaning Lines — compact body and adjustable gap help remove moisture, dust, and process residue around boards and narrow equipment spaces.
• Flat Panel, Glass, and Sheet Processing — continuous air sheet supports edge drying, surface dust removal, and liquid blow-off on flat substrates.
• Automotive Component Drying Stations — works for parts that need directed airflow after washing, rinsing, or coolant removal.
• Overhead and Flush-Mount Installations — bottom inlet and side inlet options help route pipework cleanly when the air knife must be installed close to a conveyor or frame.
• Wide-Format Production Lines — custom length from 50–4000 mm allows the knife to match different conveyor widths and product sizes.
Technical Parameters
Specification Table:
Parameter | Specification |
Model | Aluminum Air Knife D |
Cross-Section Size | 42W × 85H mm |
Main Material | Aluminium Alloy |
Air Inlet Position | End (Both Sides), Side (M6), Bottom |
Air Inlet Size | Φ32 / Φ38 / Φ45 |
Inlet Thread (Side) | M6 |
Air Knife Edge Size | 0.1–4.0 mm (Adjustable) |
Customizable Length | 50–4000 mm |
End Sealing | High-Temp Silicone Gasket Seal (≤250°C) |
OEM / ODM | Supported |
Factory Capability · Customization · Service
• QXY machines the 42×85mm aluminium alloy body, inlet interfaces, outlet edge, end plates, and mounting-related features with in-house CNC processing.
• Custom lengths from 50–4000 mm can be produced according to customer drawings, sample units, or written equipment dimensions.
• Configuration options include inlet position, inlet pipe diameter, adjustable air gap range, surface finish, and mounting requirement.
• OEM and ODM support is available for equipment builders who need matching air knives, air pipes, blowers, brackets, and system accessories.
• High-Temp Silicone Gasket Seal (≤250°C) is fitted as the standard end sealing solution for this product structure.
• Before shipment, QXY checks dimensional accuracy, inlet interface, edge-gap adjustment, sealing condition, and pressure integrity to confirm the unit is ready for installation.
Competitive Advantage
Comparison Item | QXY Aluminum Air Knife D | Standard Air Knife |
Air Gap Adjustability | Adjustable 0.1–4mm ✓ | Fixed, not adjustable ✗ |
Body Profile | 42W × 85H mm compact body for limited mounting space | Larger body may need more clearance |
Inlet Positions | End, side M6, and bottom inlet options | Single or fewer inlet options |
Inlet Pipe Options | Φ32 / Φ38 / Φ45 for flexible air-source matching | Limited pipe diameter range |
Custom Length | 50–4000 mm factory-customized length | Standard sizes only |
High-Temp Sealing | Silicone gasket ≤250°C ✓ | Standard rubber seal ✗ |
Customization | Length, air gap, inlet position, inlet size, and finish can be specified | Limited customization |
About Us & Custom Inquiry
Shenzhen Qixingyuan Machinery Equipment Co., Ltd.
We are a professional manufacturer specializing in industrial air knife systems, including aluminum alloy, stainless steel, and PVC air knives. Our production covers air knives, blowers, mounting hardware, pipework, and system accessories. CNC precision machining, in-process quality control, and final verification are used to keep each unit consistent before shipment.
We support OEM and ODM projects for electronics, automotive, food and beverage, pharmaceutical, and general manufacturing customers. Customers may send drawings, samples, equipment photos, or application descriptions. Our engineering team helps confirm the air knife size, inlet layout, airflow direction, and installation method so the final solution can integrate with the customer's line.
Request a Custom Quote
We support customized air knife length, air gap, and airflow design according to your equipment requirements.
For a fast quotation, please provide the model or size requirement, air knife length, inlet position, inlet pipe size, material, mounting position, application scenario, air source type, working quantity, and any special drawing or installation limit that may affect selection.
