Dual-outlet airflow structure — one air knife body can provide broader or two-direction air coverage, helping remove water, dust, oil mist, or debris from wider product surfaces.
60W × 125H mm aluminium alloy body — the deeper internal chamber helps stabilize the air supply before the airflow reaches the two outlet edges.
0.1 – 2.0 mm adjustable air knife edge — the air gap can be set for fine drying, stronger blow-off, or line-speed changes without replacing the knife body.
End, side, and bottom inlet options with Φ38 / Φ45 / Φ51 / Φ60 inlet sizes — easier pipe routing for different equipment frames and blower connections.
Factory-customizable length 50 – 4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support — every unit can be built according to drawing, line width, and installation position.
Product Key Selling Points
• Dual-outlet airflow structure — one air knife body can provide broader or two-direction air coverage, helping remove water, dust, oil mist, or debris from wider product surfaces.
• 60W × 125H mm aluminium alloy body — the deeper internal chamber helps stabilize the air supply before the airflow reaches the two outlet edges.
• 0.1 – 2.0 mm adjustable air knife edge — the air gap can be set for fine drying, stronger blow-off, or line-speed changes without replacing the knife body.
• End, side, and bottom inlet options with Φ38 / Φ45 / Φ51 / Φ60 inlet sizes — easier pipe routing for different equipment frames and blower connections.
• Factory-customizable length 50 – 4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support — every unit can be built according to drawing, line width, and installation position.

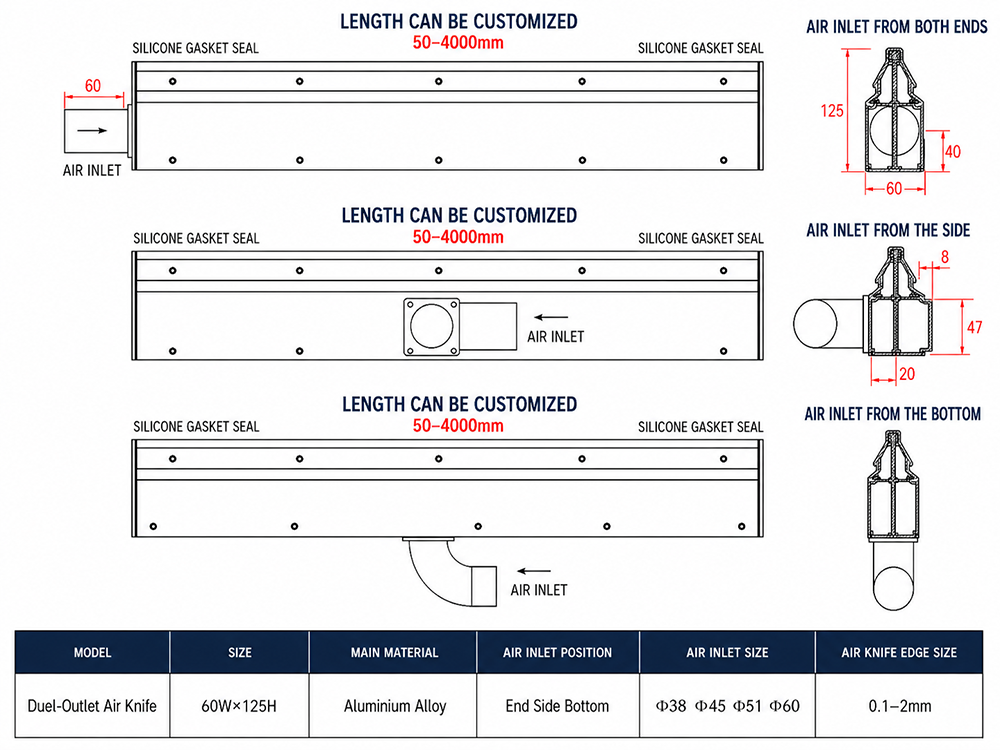

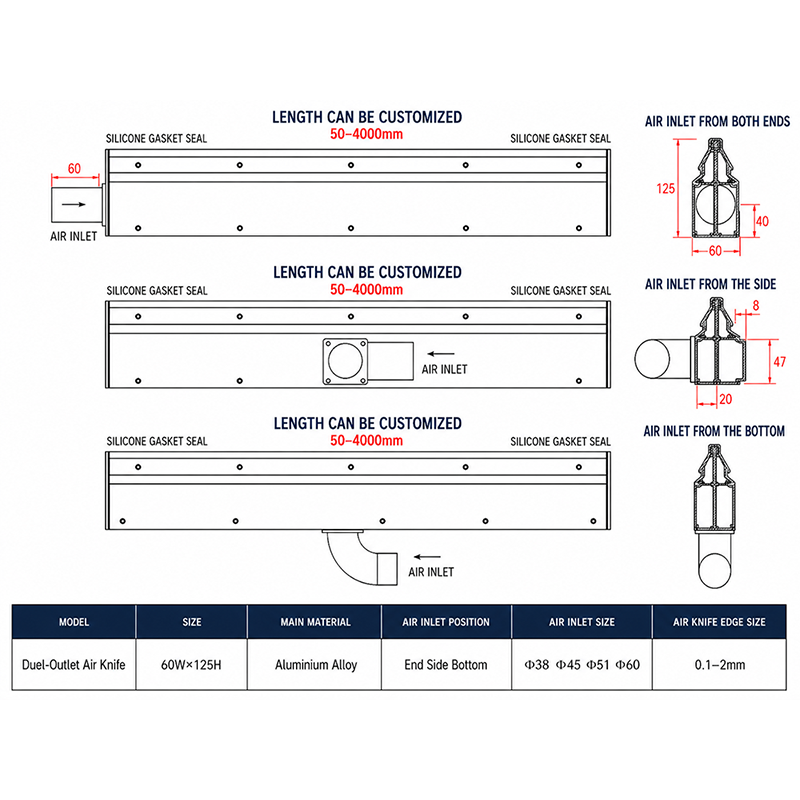

Product Structure & Working Principle
• The 60W × 125H mm aluminium alloy body forms a stable air chamber. It is suitable for applications that need stronger air volume than a small compact air knife.
• Air can enter from both ends, from the side, or from the bottom. This allows the same model to fit horizontal, vertical, overhead, or compact machine layouts.
• After entering the body, air first fills the internal plenum. The chamber balances pressure along the full custom length, especially on medium and long air knives up to 4000 mm.
• The internal airflow path guides air toward the outlet edges. The pressure is converted into a thin, high-speed air sheet for drying, cleaning, and blow-off work.
• The 0.1 – 2.0 mm adjustable outlet edge allows the operator to tune airflow intensity according to product surface, distance, water load, and conveyor speed.
• Both ends use High-Temp Silicone Gasket Seal (≤250°C) to reduce air leakage and keep the air chamber sealed during continuous industrial operation.

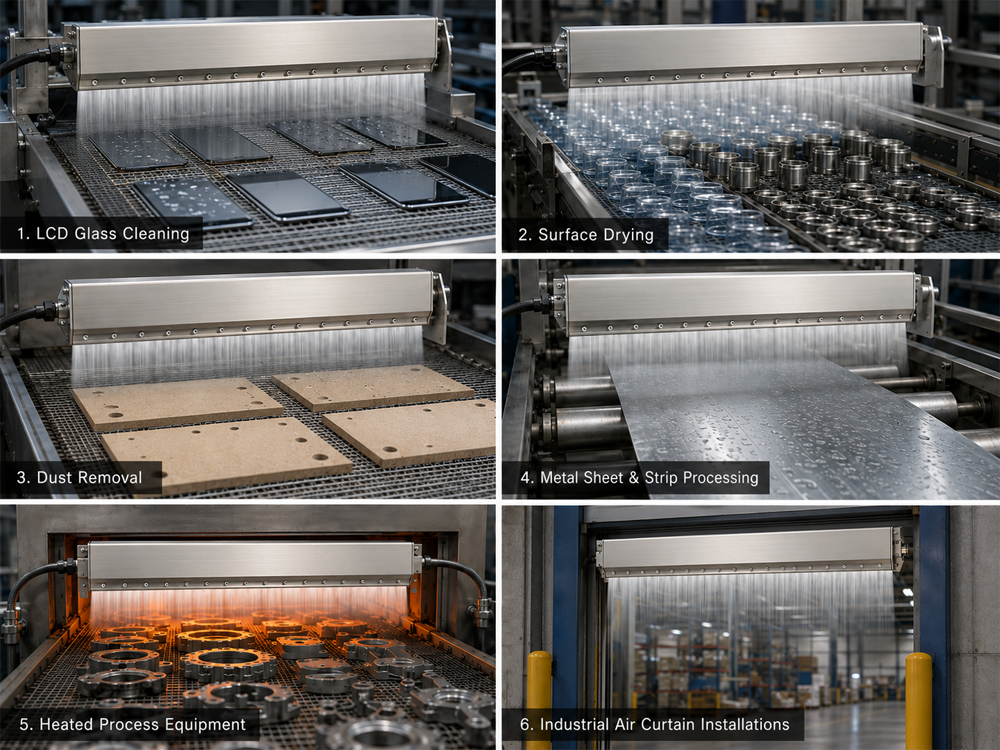

Application Scenarios
The Dual-Outlet Air Knife is suitable for production lines that need broader air coverage, flexible pipe routing, and adjustable blow-off strength in one aluminium alloy air knife body.
• Surface Drying — removes water film from bottles, metal parts, plastic components, and washed workpieces after rinsing or cleaning.
• Wide-Format Production Lines — custom length 50 – 4000 mm supports wider conveyor widths, panels, sheets, and continuous material handling lines.
• Metal Sheet & Strip Processing — dual outlet airflow can help clear coolant, cutting fluid, water, and small particles from moving surfaces.
• Flat Panel & Glass Processing — adjustable air gap supports controlled drying and dust removal without direct contact with the product surface.
• Automotive Component Drying Stations — suitable for parts that need stable airflow from different installation directions inside automated equipment.
• Food & Beverage Packaging Lines — aluminium alloy body and flexible inlet options support bottle, can, and package surface blow-off before labeling or coding.
Technical Parameters
Specification Table:
Parameter | Specification |
Model | Dual-Outlet Air Knife (Double-Outlet Air Knife) |
Cross-Section Size | 60W × 125H mm |
Main Material | Aluminium Alloy |
Air Inlet Position | End (Both Sides), Side, Bottom |
Air Inlet Size | Φ38 / Φ45 / Φ51 / Φ60 |
Air Knife Edge Size | 0.1 – 2.0 mm (Adjustable) |
Customizable Length | 50 – 4000 mm |
End Sealing | High-Temp Silicone Gasket Seal (≤250°C) |
OEM / ODM | Supported |
Factory Capability · Customization · Service
• QXY machines the 60W × 125H mm aluminium alloy body, inlet interfaces, edge structure, end plates, and mounting details with CNC processing for dimensional consistency.
• Custom length is available from 50 – 4000 mm, based on the drawing requirement, conveyor width, drying area, or equipment installation space.
• Configuration can be adjusted for inlet position, inlet pipe diameter, edge gap range, mounting style, and surface finish according to the user's equipment layout.
• OEM and ODM orders are supported. Customers can provide drawings, samples, existing machine dimensions, or written application requirements.
• High-Temp Silicone Gasket Seal (≤250°C) is fitted as the standard end sealing solution to help maintain airtight performance under continuous operation.
• Before dispatch, each unit can be checked by pressure test, edge-gap calibration, visual inspection, and dimensional inspection to confirm it matches the order specification.
Competitive Advantage
Comparison Item | QXY Dual-Outlet Air Knife | Standard Air Knife |
Outlet Structure | Dual-outlet layout supports wider or two-direction airflow coverage | Single outlet, limited coverage direction |
Body Cross-Section | 60W × 125H mm body with deeper internal air chamber | Smaller or standard chamber volume |
Air Gap Adjustability | Adjustable 0.1–2mm ✓ | Fixed, not adjustable ✗ |
Inlet Positions | End, side, and bottom inlet options for different machine layouts | Usually one fixed inlet position |
Inlet Pipe Options | Φ38 / Φ45 / Φ51 / Φ60 for blower or pipe matching | Limited pipe diameter choices |
Custom Length | Factory-customized 50–4000mm for line-width matching | Standard sizes only |
High-Temp Sealing | Silicone gasket ≤250°C ✓ | Standard rubber seal ✗ |
OEM / ODM | Length, inlet, gap, and mounting details can be made to drawing | Limited customization support |
About Us & Custom Inquiry
Shenzhen Qixingyuan Machinery Equipment Co., Ltd.
We are a professional manufacturer specializing in industrial air knife products and supporting air systems. Our product range covers aluminum alloy, stainless steel, and PVC air knives, as well as blowers, mounting hardware, and system accessories. Production is supported by CNC precision machining, in-process quality controls, and verification before shipment.
With OEM and ODM experience, we serve equipment builders and production users in electronics, automotive, food and beverage, pharmaceutical, and general manufacturing industries. Customers can send drawings, samples, or application descriptions, and our engineering team will help confirm an air knife solution that integrates into the equipment and performs as required.
Request a Custom Quote
We support customized air knife length, air gap, and airflow design according to your equipment requirements.
For this Dual-Outlet Air Knife, please provide the required air knife length, inlet position, inlet pipe size, outlet gap requirement, installation position, material requirement, application scene, working distance, quantity, and any existing model or drawing number. These details help us confirm the structure and quotation faster.
