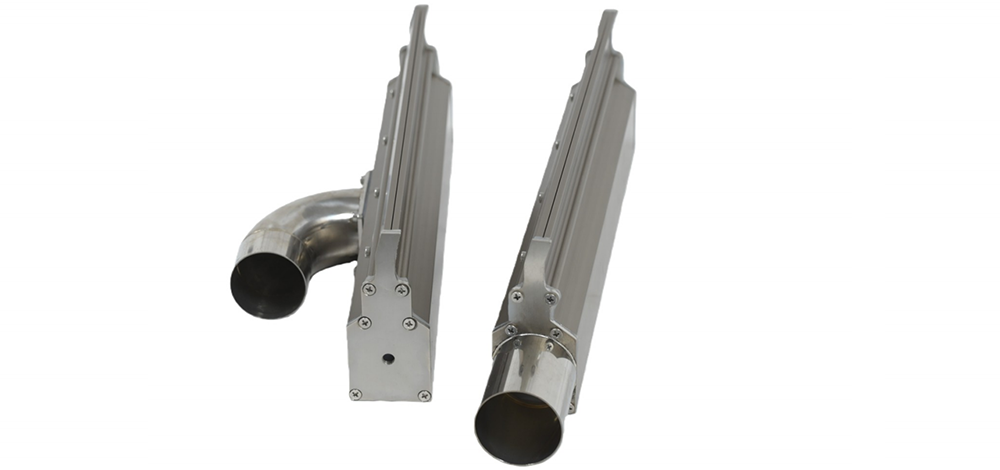

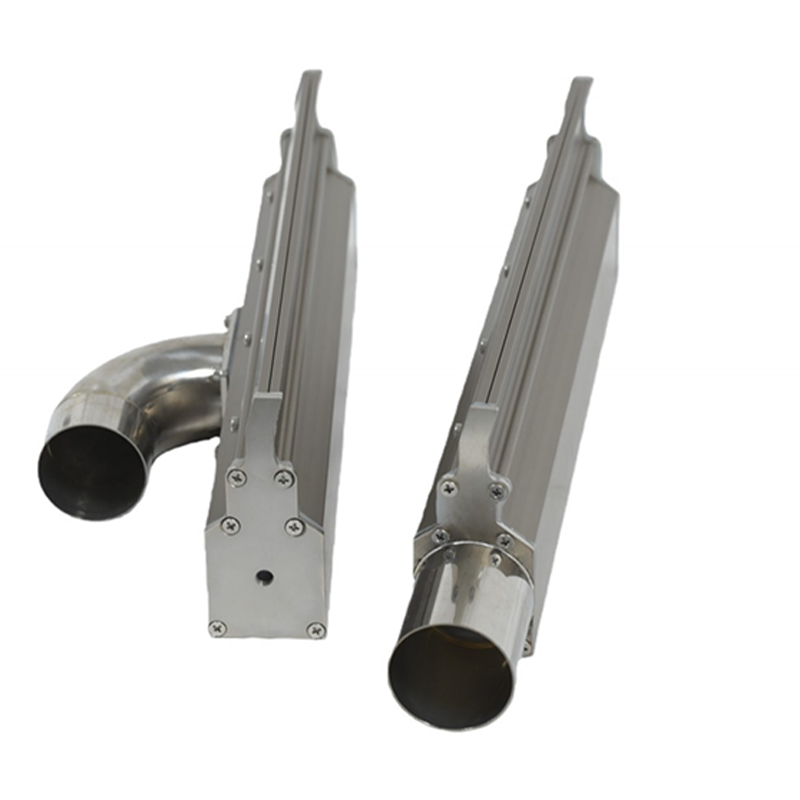

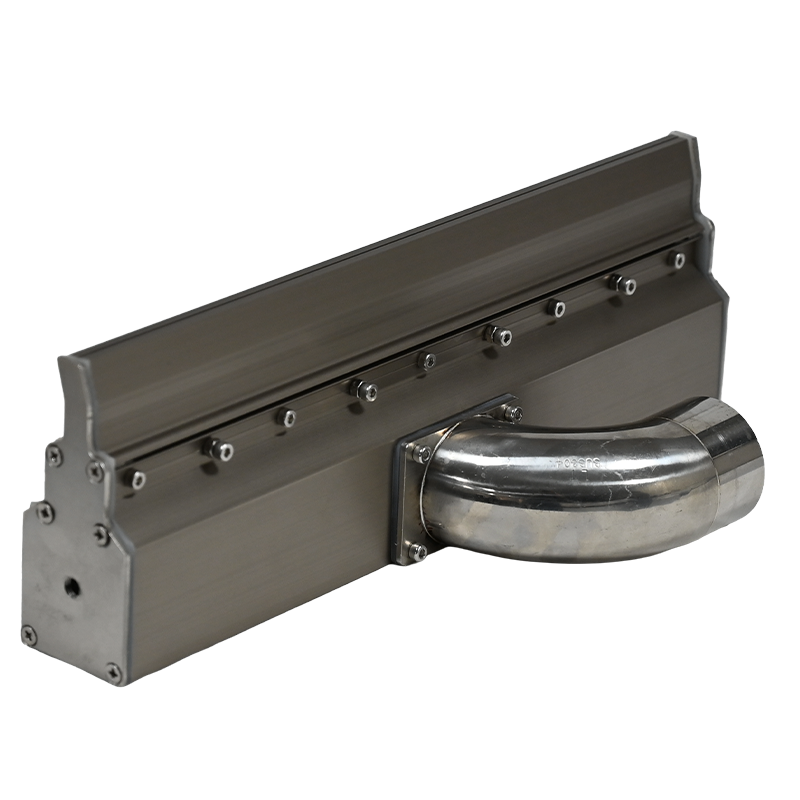

15° angled-nozzle outlet — the slanted mouth directs the air sheet toward the target surface, useful when the air knife cannot be mounted directly above the workpiece.
Adjustable air gap: 0.1 – 3.0 mm. The outlet can be tuned for precise particle removal, controlled drying, or stronger localized blow-off.
Three inlet position options: air inlet from both ends, from the side, or from the bottom. This helps the C-E model fit different pipe directions and machine frames.
Φ38 / Φ45 / Φ48 / Φ51 inlet options — suitable for medium airflow systems where pipe diameter must match the equipment layout.
Factory-customizable length 50 – 4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support. Each unit can be built according to drawings, samples, or written equipment requirements.
Product Key Selling Points
• 15° angled-nozzle outlet — the slanted mouth directs the air sheet toward the target surface, useful when the air knife cannot be mounted directly above the workpiece.
• Adjustable air gap: 0.1 – 3.0 mm. The outlet can be tuned for precise particle removal, controlled drying, or stronger localized blow-off.
• Three inlet position options: air inlet from both ends, from the side, or from the bottom. This helps the C-E model fit different pipe directions and machine frames.
• Φ38 / Φ45 / Φ48 / Φ51 inlet options — suitable for medium airflow systems where pipe diameter must match the equipment layout.
• Factory-customizable length 50 – 4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support. Each unit can be built according to drawings, samples, or written equipment requirements.
Product Structure & Working Principle
• 50W × 115H mm aluminum alloy extrusion provides a stable internal chamber and supports the 15° angled outlet geometry shown in the drawing.

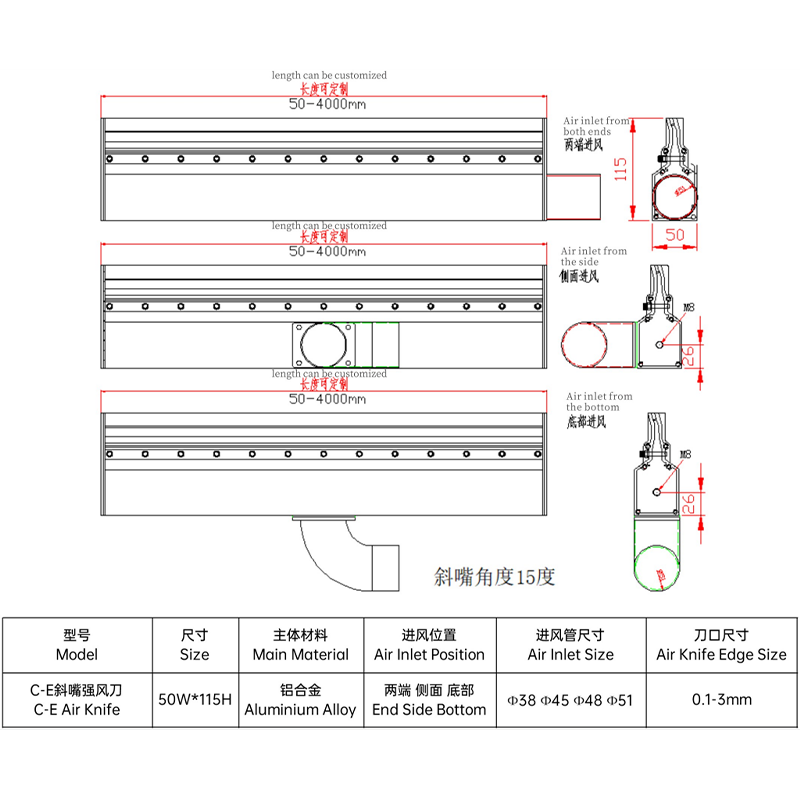

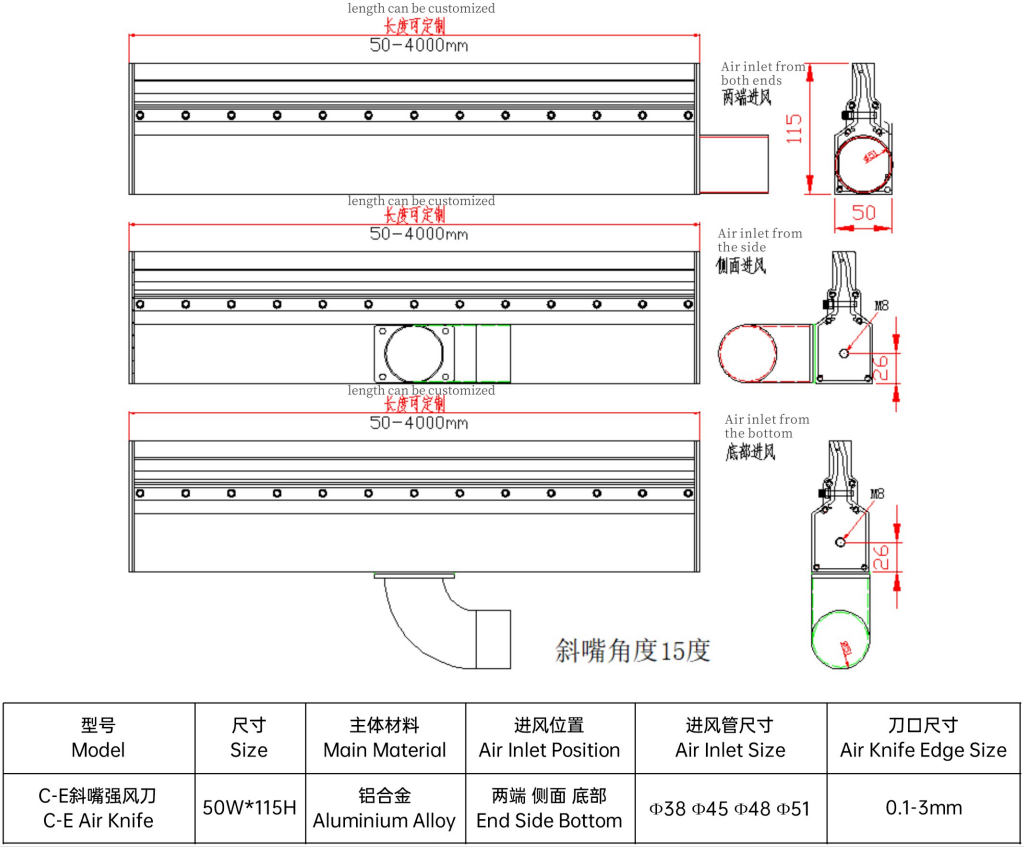

• Air can enter from both ends, from the side, or from the bottom. The side and bottom inlet drawings show M8 threaded fixing positions for secure installation.
• The Φ38 / Φ45 / Φ48 / Φ51 inlet choices allow the air supply to match different pipe systems. For custom lengths from 50 – 4000 mm, the internal chamber distributes air before it reaches the angled outlet.
• The internal path guides air from the chamber into the slanted nozzle, where the flow is accelerated into a directional flat air sheet.
• The outlet edge size is adjustable from 0.1 – 3.0 mm. Operators can tune airflow intensity with the edge screws without disassembling the full air knife.
• High-Temp Silicone Gasket Seal (≤250°C) is used at the end sealing positions to reduce leakage and support stable operation in heated or continuous drying processes.
Application Scenarios
The C-E Angled-Nozzle Strong Air Knife is suitable for lines that need directional airflow from an offset mounting position, with adjustable impact and flexible inlet routing.
• Angled Surface Drying — 15° slanted outlet directs airflow toward parts when straight vertical mounting is not practical.
• Flat Panel & Glass Processing — directional air sheet helps remove water marks and fine particles while keeping the body offset from the surface path.
• PCB Cleaning Lines — 0.1 – 3.0 mm adjustable gap helps control air impact for moisture removal and particle blow-off.
• Label & Coding Stations — angled airflow helps dry the product surface before printing, marking, or labeling.
• Wide-Format Production Lines — factory length customization from 50 – 4000 mm allows the air knife to match different conveyor and product widths.
• Heated Process Equipment — High-Temp Silicone Gasket Seal (≤250°C) supports use near drying tunnels, heat-assisted washing lines, and warm-air blow-off stations.
Technical Parameters
Specification Table:
Parameter | Specification |
Model | C-E Angled-Nozzle Strong Air Knife |
Cross-Section Size | 50W × 115H mm |
Main Material | Aluminium Alloy |
Air Inlet Position | End (Both Sides), Side (M8), Bottom (M8) |
Air Inlet Size | Φ38 / Φ45 / Φ48 / Φ51 |
Inlet Thread | M8 — visible on side and bottom inlet drawings |
Angled Outlet | 15° slanted nozzle |
Air Knife Edge Size | 0.1 – 3.0 mm (Adjustable) |
Customizable Length | 50 – 4000 mm |
End Sealing | High-Temp Silicone Gasket Seal (≤250°C) |
OEM / ODM | Supported |
Factory Capability · Customization · Service
• QXY processes the 50W × 115H mm aluminum alloy air knife body, 15° angled outlet section, inlet ports, edge parts, and sealing surfaces with in-house CNC machining for controlled dimensional accuracy.
• Custom blade length is supported from 50 – 4000 mm. The air knife can be matched to conveyor width, product width, or equipment frame space.
• Configuration options include inlet position, inlet pipe diameter, air gap range, mounting method, and surface finish. The 15° outlet direction can be matched to offset drying points.
• OEM and ODM orders are accepted. Customers may provide drawings, samples, machine photos, or written application conditions for engineering confirmation.
• High-Temp Silicone Gasket Seal (≤250°C) is fitted as the standard end sealing solution, helping reduce leakage without requiring an extra sealing upgrade.
• Before shipment, each customized unit is checked by pressure test, edge-gap calibration, inlet-position inspection, and dimensional confirmation.
Competitive Advantage
Comparison Item | QXY C-E Angled-Nozzle Strong Air Knife | Standard Air Knife |
Angled Outlet | 15° slanted nozzle directs airflow toward the target surface | Straight outlet with less directional offset |
Air Gap Adjustability | Adjustable 0.1–3mm ✓ | Fixed, not adjustable ✗ |
Inlet Positions | End, side, and bottom inlet layouts for flexible pipe routing | Usually one inlet layout or limited pipe direction |
Inlet Pipe Options | Φ38 / Φ45 / Φ48 / Φ51 for medium airflow systems | Fewer inlet diameter options |
Custom Length | Factory-customized 50 – 4000 mm for narrow or wide conveyor widths | Mostly standard lengths only |
Body Cross-Section | 50W × 115H mm body supports directional airflow with stable plenum space | General body profile may not match the process angle |
High-Temp Sealing | Silicone gasket ≤250°C ✓ | Standard rubber seal ✗ |
Customization | Length, gap, inlet position, inlet diameter, and surface finish can be specified | Limited configuration changes |
About Us & Custom Inquiry
Shenzhen Qixingyuan Machinery Equipment Co., Ltd.
We are a professional manufacturer focused on industrial air knife equipment, including aluminum alloy, stainless steel, and PVC air knives. Our product range also covers blowers, mounting hardware, and system accessories. With CNC precision machining, in-process quality controls, and verification before shipment, we supply air knife products for real production-line requirements.
We support OEM and ODM projects for electronics, automotive, food and beverage, pharmaceutical, and general manufacturing customers. Customers may send drawings, samples, application descriptions, or equipment photos. Our engineering team reviews airflow direction, installation angle, and pipe routing, then provides a solution that integrates and performs as required.
Request a Custom Quote
We support customized air knife length, air gap, and airflow design according to your equipment requirements.
