Narrow adjustable edge gap: 0.5 – 1.5 mm — suitable for controlled hot-air drying, precise blow-off, and surface treatment where excessive air volume is not needed.
50W × 115H mm aluminium alloy body — stable internal air distribution for compact drying stations, component lines, and medium-width production equipment.
End, side M6, and bottom inlet options make pipe routing easier for horizontal lines, vertical frames, overhead equipment, and compact drying stations.
Φ32 / Φ38 / Φ45 / Φ51 inlet sizes support different blower pipe sizes and allow the air knife to match existing production equipment.
Factory-customizable length 100 – 4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support — each unit can be built to the required line width and installation layout.
Product Key Selling Points
• Narrow adjustable edge gap: 0.5 – 1.5 mm — suitable for controlled hot-air drying, precise blow-off, and surface treatment where excessive air volume is not needed.
• 50W × 115H mm aluminium alloy body — stable internal air distribution for compact drying stations, component lines, and medium-width production equipment.
• End, side M6, and bottom inlet options make pipe routing easier for horizontal lines, vertical frames, overhead equipment, and compact drying stations.
• Φ32 / Φ38 / Φ45 / Φ51 inlet sizes support different blower pipe sizes and allow the air knife to match existing production equipment.
• Factory-customizable length 100 – 4000 mm with High-Temp Silicone Gasket Seal (≤250°C) and full OEM/ODM support — each unit can be built to the required line width and installation layout.
Product Structure & Working Principle

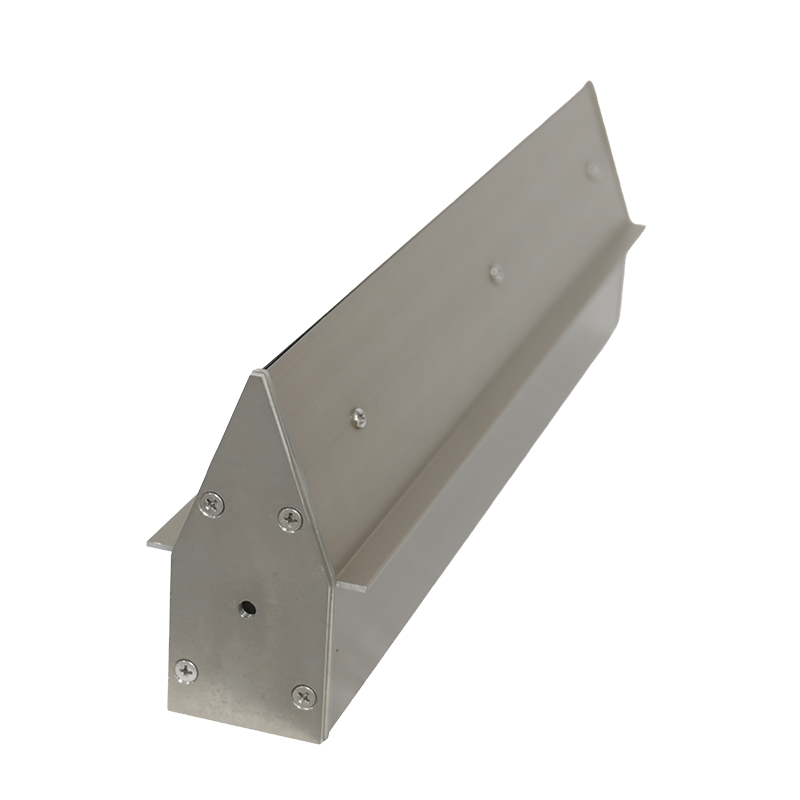

• The 50W × 115H mm aluminium alloy body provides a stable chamber for continuous hot-air or blower-air delivery on drying and blow-off lines.

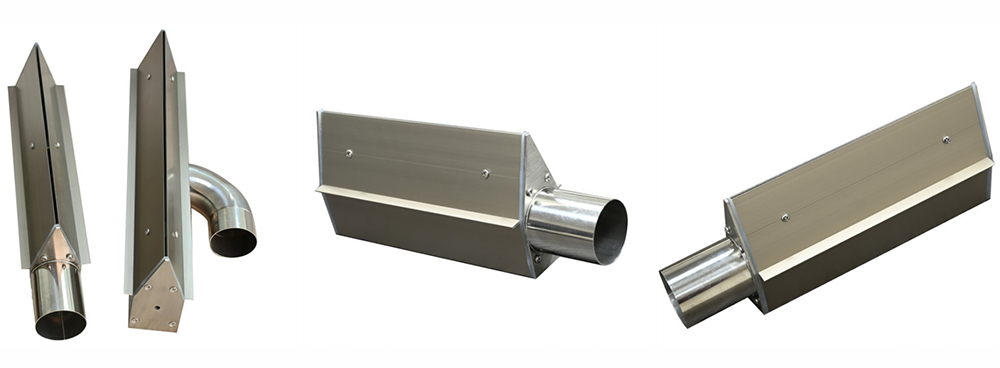

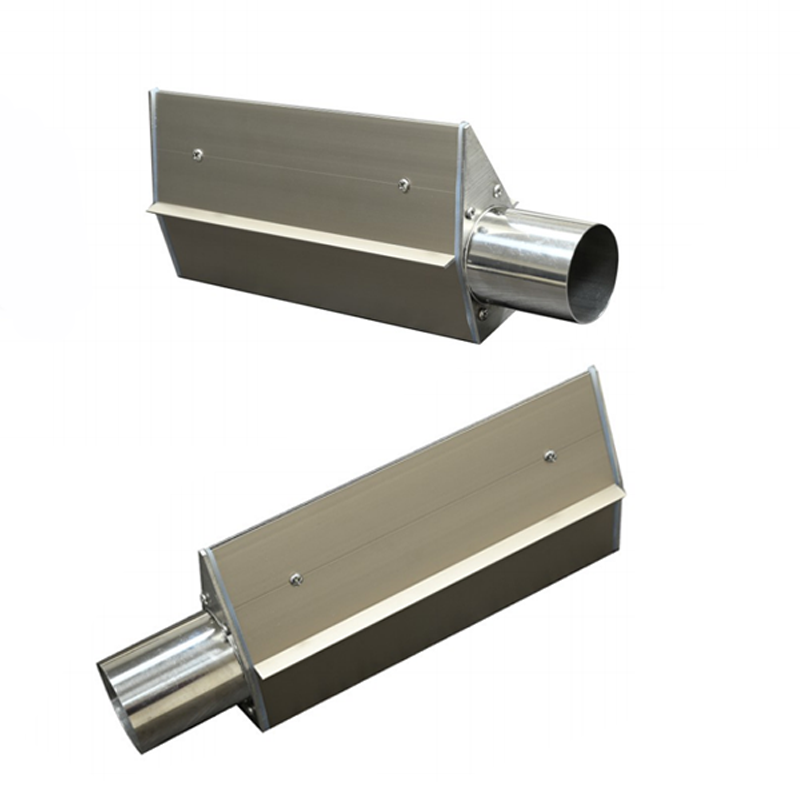

• Air can enter from both ends, from the side M6 inlet, or from the bottom inlet. This allows the same body style to fit different machine directions and pipe routes.
• After entering the body, air first fills the internal plenum. The chamber helps balance pressure along the full custom length, especially on long units up to 4000 mm.
• The internal airflow path guides air toward the outlet edge and converts chamber pressure into a thin, high-speed air sheet for surface drying and cleaning.
• The 0.5 – 1.5 mm adjustable outlet edge gives finer airflow control for sensitive surfaces, smaller parts, and processes that need stable drying without excessive air consumption.
• Both ends use High-Temp Silicone Gasket Seal (≤250°C) to reduce leakage and keep the air chamber sealed during continuous heated-process operation.

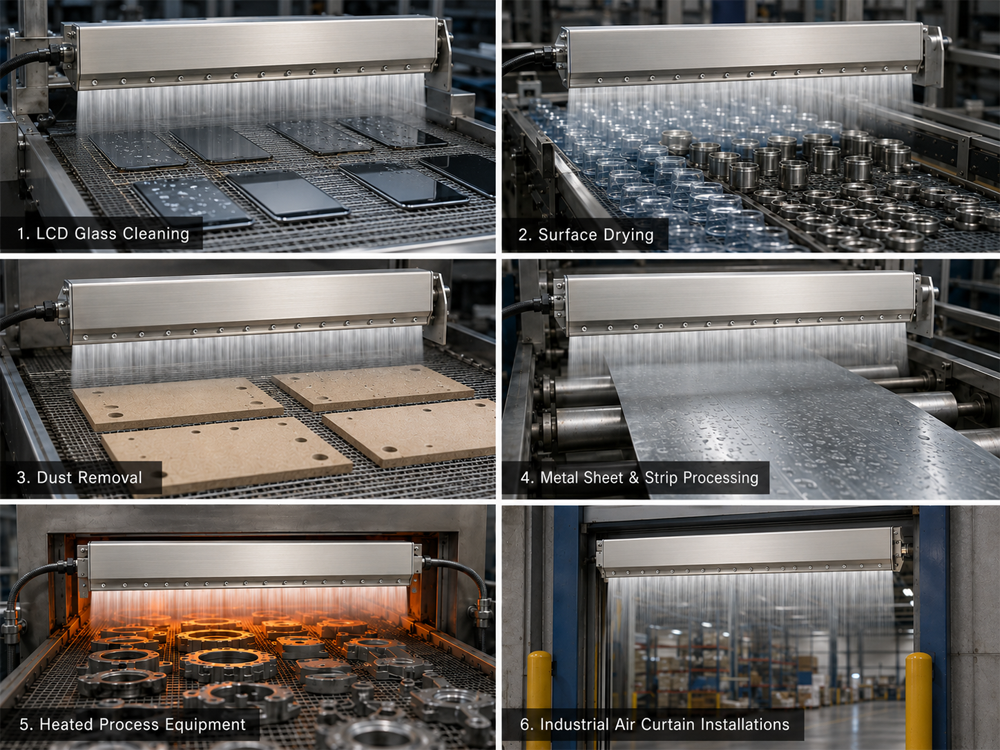

Application Scenarios
The Type-F Hot Air Knife is suitable for precision hot-air drying and controlled surface cleaning where a narrower outlet gap is preferred.
• PCB Cleaning Lines — controlled air gap supports moisture removal from boards and components without using an unnecessarily wide outlet.
• Flat Panel & Glass Processing — narrow adjustable edge helps provide stable, non-contact drying and dust removal on smooth surfaces.
• Pharmaceutical & Medical Device Lines — suitable for controlled drying of small parts, containers, and precision components in equipment frames.
• Label & Coding Stations — removes surface moisture before printing, coding, labeling, or inspection on bottles and packages.
• Ultrasonic Cleaning Lines — supports precise blow-off after cleaning where the workpiece surface needs controlled airflow intensity.
• Multi-Knife Array Systems — 100 – 4000 mm custom length and compact inlet options support repeated knife layouts in production equipment.

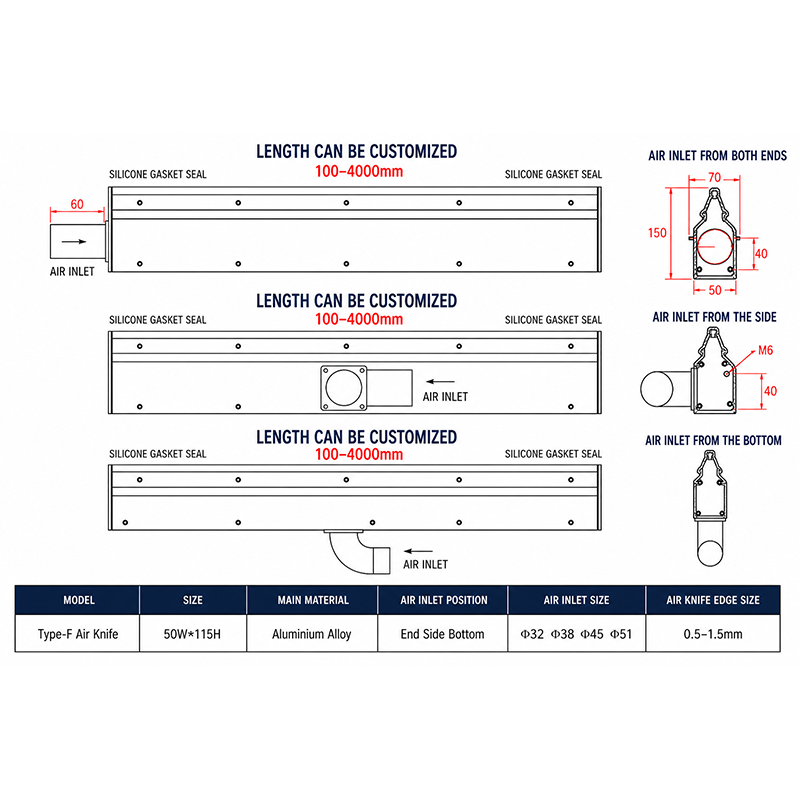

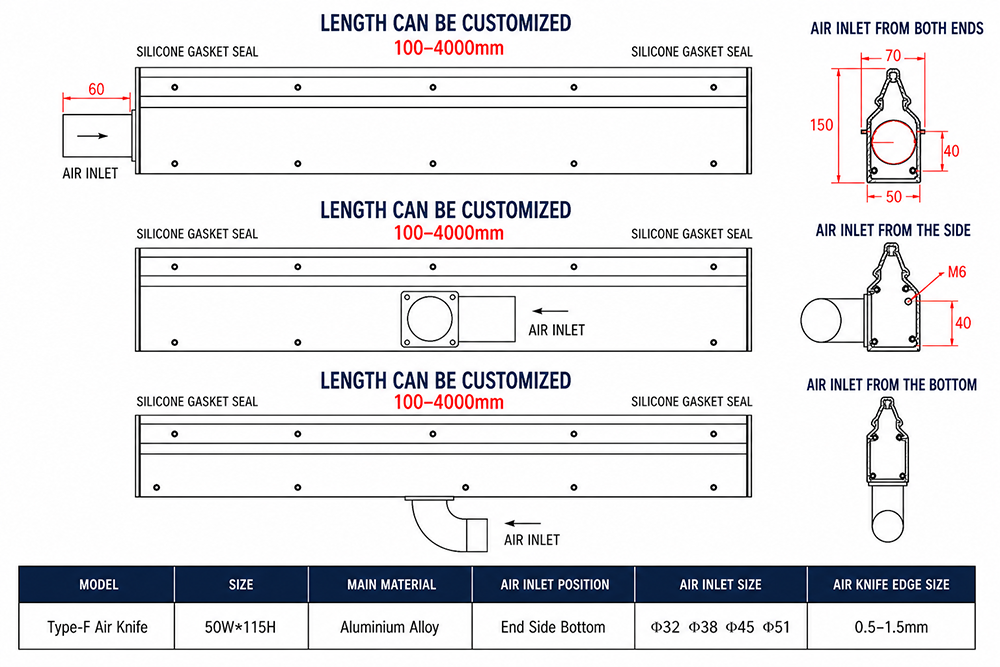

Technical Parameters
Specification Table:
Parameter | Specification |
Model | Type-F Hot Air Knife (F-Type Hot Air Knife) |
Cross-Section Size | 50W × 115H mm |
Main Material | Aluminium Alloy |
Air Inlet Position | End (Both Sides), Side (M6), Bottom |
Air Inlet Size | Φ32 / Φ38 / Φ45 / Φ51 |
Inlet Thread (Side) | M6 |
Air Knife Edge Size | 0.5 – 1.5 mm (Adjustable) |
Customizable Length | 100 – 4000 mm |
End Sealing | High-Temp Silicone Gasket Seal (≤250°C) |
OEM / ODM | Supported |
Factory Capability · Customization · Service
• QXY processes the 50W × 115H mm aluminium alloy body, inlet interfaces, outlet edge, end plates, and mounting details with CNC machining for consistent assembly accuracy.
• Custom length is available from 100 – 4000 mm, based on conveyor width, heated drying area, machine frame space, or customerdrawing requirement.
• Configuration can be adjusted for inlet position, pipe diameter, precision 0.5–1.5mm edge gap, mounting method, and surface finish according to the user's equipment layout.
• OEM and ODM orders are supported. Customers can provide drawings, samples, installation dimensions, or written application requirements.
• High-Temp Silicone Gasket Seal (≤250°C) is fitted as the standard end sealing solution for this hot air knife series.
• Prior to delivery, each unit can be checked by pressure test, edge-gap calibration, dimensional inspection, and visual inspection to confirm it matches the order specification.
Competitive Advantage
Comparison Item | QXY Type-F Hot Air Knife | Standard Air Knife |
Thermal Airflow Use | Narrow 0.5–1.5mm edge for controlled drying and lower unnecessary air volume | General air blow-off design |
Body Cross-Section | 50W × 115H mm body for stable hot-air distribution | Standard body with less process-specific selection |
Air Gap Adjustability | Adjustable 0.5–1.5mm ✓ | Fixed, not adjustable ✗ |
Inlet Positions | End, side M6, and bottom inlet options | Usually one fixed inlet position |
Inlet Pipe Options | Φ32 / Φ38 / Φ45 / Φ51 for equipment pipe matching | Limited pipe diameter choices |
Custom Length | Factory-customized 100–4000mm for line-width matching | Standard sizes only |
High-Temp Sealing | Silicone gasket ≤250°C ✓ | Standard rubber seal ✗ |
OEM / ODM | Length, inlet, edge gap, and mounting details can be made to drawing | Limited customization support |
About Us & Custom Inquiry
Shenzhen Qixingyuan Machinery Equipment Co., Ltd.
We are a specialized manufacturer focused on industrial air knife products and complete air delivery solutions. Our lineup covers aluminum alloy, stainless steel, and PVC air knives, plus blowers, mounting hardware, and system accessories. CNC precision machining and in-process inspection help keep each order consistent before shipment.
Our OEM and ODM work supports clients in electronics, automotive, food and beverage, pharmaceutical, and general manufacturing applications. Customers may provide drawings, samples, machine dimensions, or application details, and our engineering team will help build a solution that fits the equipment and performs as required.
Request a Custom Quote
We support customized air knife length, air gap, and airflow design according to your equipment requirements.
For this Type-F Hot Air Knife, please provide the required air knife length, inlet position, inlet pipe size, air gap requirement, installation position, material requirement, application scene, working distance, quantity, and any existing model or drawing number. These details help us confirm the structure and quotation faster.
