Sensitive production lines do not fail only because of poor airflow. Many problems start on the Air Knife body itself. Water sits on a rough surface. Product residue catches around a weld. Cleaning chemicals attack a low-grade material. Dust collects on a ledge close to the conveyor. The air knife may still blow air, but the area around it is no longer clean enough for the process.
This is why air knife surface finish matters in food processing, pharmaceutical packaging, LCD cleaning, PCB wet processing, medical device production, and other lines where surface cleanliness is part of product quality. A smooth finish does not replace correct airflow design. It does not make a weak air curtain stronger. Its job is different: it makes the air knife easier to clean, harder for residue to hold onto, and less likely to become a hidden source of contamination.
For buyers, the key point is simple. Do not treat surface finish as a cosmetic detail. It should be part of the air knife specification, together with material grade, slot width, length, inlet layout, mounting angle, and cleaning method.
On a hardware line a small scratch on an aluminum air knife does not matter that much.. On a pharmaceutical packaging line or a dairy washdown line this same kind of surface defect can become a big cleaning problem.These lines often have water, product mist, sanitizer, fine powder or tiny particles near the air knife. These things seem harmless when the line is running. They can get into rough areas and stay there even after the line is cleaned normally.
The risk of this happening is even greater when the air knife is installed close to a wet product path. For example a bottle shoulder, cap, PCB panel, glass sheet or food package may pass by the air knife at a distance of only 20-50 mm.If residue builds up on the air knife body or near the outlet the airflow can disturb it. Move it back into the process area. This is a problem because the air knife is supposed to remove water or dust but it can create another cleanliness issue.
The surface finish of the air knife is also important for inspection. A smooth stainless steel air knife body is easier to wipe down easier to see and easier to verify after cleaning.
On the hand rough welds, pits, threads and hidden recesses, on the air knife body slow down sanitation teams because they need to give these areas more attention by hand.
The surface finish is what the metal surface looks like after it has been machined, ground, polished, welded or passivated. When we talk about surface finish in industries that need to be clean people usually measure it by something called Ra which's the roughness average. The surface finish of the metal is smoother when the Ra number is lower.
In industries that handle food and need to be clean people often use a surface finish of Ra 0.8 micrometers, which's the same as 32 microinches as a standard to make sure equipment is clean. This is important for surfaces that come into contact with products. However some companies that make medicine or handle food with a lot of protein or dairy products or work in cleanrooms might need a smoother surface finish like Ra 0.4 micrometers or they might want the surface to be electropolished. What surface finish is needed depends on the rules of the plant and where the air knife is located like if it is near the products or in an area where things might splatter or in a area with utilities.
For an air knife we need to think about the surface finish, in three areas..
· External surfaces: The outside body should be smooth enough to clean and inspect. Ledges, deep tool marks, and exposed threads can hold water or residue.
· Welded or joined areas: Welds should be smooth and free from pits, cracks, and crevices. A clean material grade cannot compensate for a rough weld in a washdown zone.
· Internal air path and outlet area: The inside should avoid geometry that traps moisture or particles, especially where the air knife may be opened for cleaning or used near a wet process.

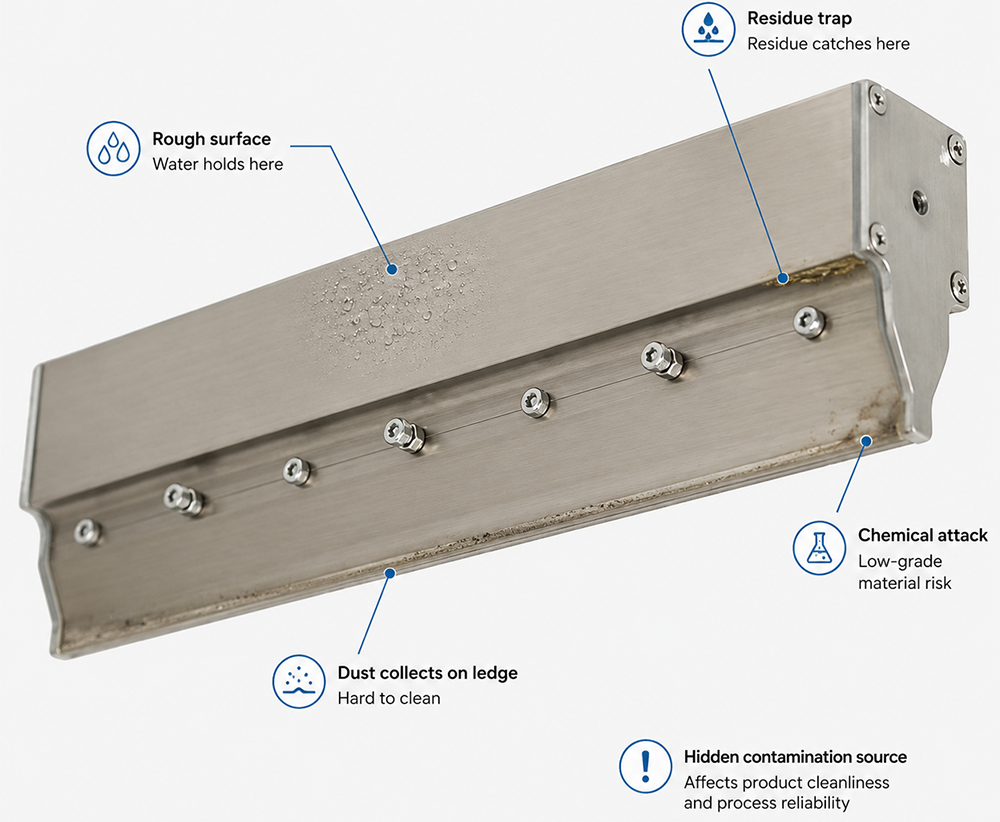

A rough surface has valleys. When you look closely under a microscope you see that these valleys can hold water, leftover product, cleaning chemicals, dust or fine powder. The line might look clean from away but residue can stay stuck in the surface texture.
That matters for practical reasons.
· Water retention: Rough areas take longer to dry after cleaning. Standing water helps residue build up. Can lead to microbial growth in food or pharmaceutical areas.
· Particle release: Dried residue can break loose when the air knife starts up again. The airflow doesn't have to touch the product to move particles into the clean area.
· Chemical attack: Cleaning chemicals left in pits or scratches can speed up corrosion especially if the material isn't suitable for exposure to chloride, salt, acid or alkaline.
· Biofilm risk: On food and high-protein lines rough areas and crevices are harder to clean. If residue stays behind later cleaning becomes less predictable.
· Inspection difficulty: A rough or stained surface makes it harder for operators to tell whether the component is clean damaged or starting to corrode.
This is why surface finish should be discussed before the air knife is built. It is much easier to specify a finish, smooth welds and the right stainless steel grade, at the start than to correct a rough surface after the air knife is installed over a running conveyor. Surface finish and air knife design go hand in hand to ensure an efficient process.

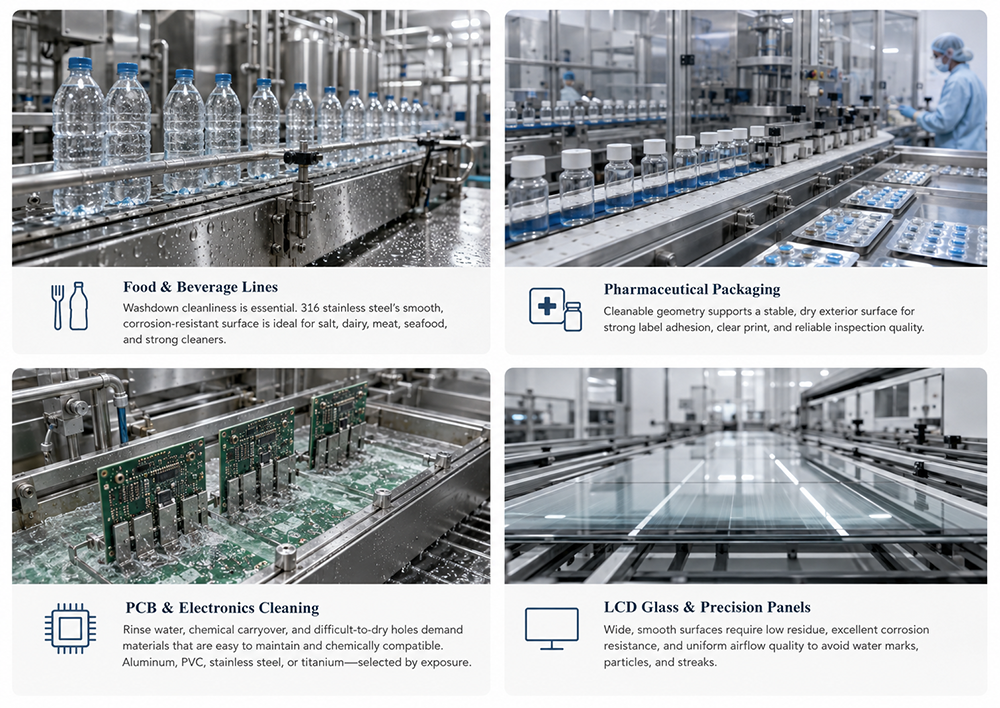

Not every air knife needs the same surface finish. The right level depends on where the air knife sits and what can touch it.
Air knives are often used after bottle rinsing, package washing, can drying, or surface blow-off before labeling. The finish matters because water, sugar, protein, fat, salt, or cleaning foam may reach the air knife body. A stainless steel air knife with a smooth exterior is easier to keep clean during repeated washdown. Grade 316 is often safer where salt, acid, dairy, meat, seafood, or strong cleaning chemicals are present.
On vial, ampoule, bottle, or blister packaging lines, the air knife may dry the outside surface before coding, labeling, inspection, or cartoning. Cleanliness is not only about product safety. It also affects label adhesion, print clarity, dust attraction, and visual inspection. Smooth stainless construction and cleanable geometry help keep the drying area stable.
PCB wet processing lines can involve rinse water, chemical carryover, and small holes that are difficult to dry. Here, the air knife surface finish is part of chemical compatibility and maintenance. Standard aluminum may be suitable for many dry or mild areas. PVC, stainless steel, or titanium may be considered near stronger chemical exposure, depending on the station and temperature.
LCD and glass cleaning lines care about water marks, particles, and even airflow across a wide surface. The external finish must not shed corrosion products or trapped residue near the clean side of the line. The outlet area also needs stable machining quality so the air curtain remains uniform across the panel width.
Surface finish and material grade work together. A smooth surface on the wrong material can still fail if the cleaning chemistry is too aggressive. A good material with a poor finish can still hold soil.
QXY Machinery offers stainless steel air knives in 304 and 316 grades for hygienic production environments. Grade 304 is a practical choice for many general water-based drying and washdown lines. Grade 316 is better where chloride, salt, acidic product, seafood, dairy, meat processing, or strong cleaning chemicals are part of the environment. Where welded construction and stricter corrosion control are important, 316L may be considered.
Aluminum alloy air knives are useful in many general industrial drying applications, especially where chemical exposure is low. QXY's standard aluminum alloy air knife range includes hard-anodized surfaces, a 0.5-2 mm standard slot range, factory calibration, and airflow uniformity of about +/-5 percent across the knife length. Still, aluminum is not the first choice for frequent chemical washdown or direct food contact areas.
PVC and titanium air knives serve different risk profiles. PVC can be useful near acid or alkaline chemical areas where temperature is not high. Titanium is a premium choice for highly corrosive environments where stainless steel has documented limits.
A smoother external surface does not automatically improve drying. Drying performance still depends mainly on slot gap, outlet straightness, air volume, pressure, knife length, inlet balance, mounting distance, and angle.
This distinction helps prevent a common purchasing mistake. Surface finish is for cleanliness and cleanability. Slot quality is for airflow. Both matter, but they solve different problems.
For many drying duties, QXY's general air knife parameters use a 0.5-2 mm slot range, 20-50 mm knife-to-product distance, and a 15-45 degree impingement angle. Knives longer than 600 mm often need dual inlets to keep airflow balanced. These details affect water removal, particle blow-off, and coverage across the production width.
In sensitive lines, the outlet finish and edge quality still deserve attention because burrs, dents, or uneven slot geometry can disturb the air curtain. A damaged outlet can create streaks, high spots, low spots, or particle traps near the most important part of the air knife.
The purchase specification should not only say "stainless steel air knife." That is too vague for sensitive production lines. Give the supplier enough detail to choose the right material, finish, and construction.
1. Define where the cleanliness zone is. Is the air knife in a place where products are handled where liquids might splash, in a room, where products are packaged where chemicals are used or in a general area?
2. State what material grade is needed. For general uses where hygiene is important 304 is used. Use 316 for products with chloride, salt or acid or for cleaning. Use 316L for welded construction or when corrosion control is very important..
3. Specify the target surface finish. If your plant uses a surface finish of Ra 0.8 micrometers Ra 0.4 micrometers or electropolishing write it down.
4. Check the details of welds and fasteners. Ask how welds are finished if threads are exposed outside and if the body has parts that can hold water.
5. Match the finish to the cleaning method. Different cleaning methods like wiping, foam cleaning, CIP-style washing, chemical rinsing and high-pressure washing have different requirements, for the air knife body.
6. Protect the outlet slot. The gap of the slot should be set at the factory. Protected during installation. Do not polish, grind or scrape the edge of the outlet on site.
7. Review installation angle and drainage. Mount the air knife so water and cleaning liquid can drain away instead of sitting on the body after washdown.
Specification | Practical Meaning |
Material options | 304 stainless steel for many washdown lines; 316 stainless steel where chloride, salt, acidic products, or stronger cleaning chemicals are present. |
Surface requirement | Smooth internal and external finish, with no crevice geometry. For sensitive lines, buyers should define the required Ra value in the purchase specification. |
Slot width | Adjustable to customer specification. For many drying duties, QXY uses the 0.5-2 mm standard slot range across its air knife product range. |
Installation distance | 20-50 mm is the usual knife-to-product distance for many drying applications. Longer distances reduce usable impact velocity. |
Angle | 15-45 degrees from the product surface, normally angled in the travel direction so water and particles move away from the clean zone. |
Custom support | Custom length, inlet configuration, material choice, and slot width can be matched to the line layout and cleaning environment. |
About QXY Machinery
QXY Machinery (Shenzhen Qixingyuan Machinery Equipment Co., Ltd.) is a high-tech enterprise integrating R&D, design, production, and sales, specializing in drying, dust removal, and water-blowing solutions for industrial applications. With over 10 years of focused expertise in the air knife field, QXY Machinery has developed a mature technical foundation and a complete in-house R&D system.
For sensitive production lines, QXY Machinery supplies stainless steel air knives in Grade 304 and Grade 316, along with aluminum alloy, PVC, titanium alloy, small hole PCB air knives, ring air knives, tornado air knives, and air-to-air configurations. Product selection can be matched to washdown exposure, chemical risk, cleanroom needs, slot width, inlet configuration, conveyor width, and installation space.
QXY Machinery is based in Shenzhen, China, and has served industrial drying, cleaning, and blow-off applications since 2011. The company supports custom lengths up to 6 m, custom hole patterns, custom slot widths, and application-specific material choices for production environments where cleanliness, corrosion resistance, and airflow consistency must be considered together.
Q: Does air knife surface finish affect drying performance?
A: Surface finish mainly affects cleanliness and cleanability. Drying performance depends more on slot gap, airflow volume, pressure, knife distance, and angle. A smooth outlet edge can support stable airflow, but a polished outer body alone will not fix weak drying.
Q: What Ra value is common for hygienic air knife surfaces?
A: Many hygienic equipment references use Ra 0.8 micrometers, or 32 microinches, as a common cleanability benchmark. More sensitive pharmaceutical, dairy, high-protein, or cleanroom applications may ask for Ra 0.4 micrometers or electropolishing. The plant standard should decide the final requirement.
Q: Is stainless steel always required for sensitive production lines?
A: Not always. Stainless steel is usually preferred for food, beverage, pharmaceutical, and washdown areas. Aluminum can be suitable for dry or low-chemical industrial drying. PVC or titanium may be better near certain chemical processes. The choice depends on moisture, cleaning chemistry, temperature, and contamination risk.
Q: Should I choose 304 or 316 stainless steel for an air knife?
A: Choose 304 for many general hygienic and water-based drying applications. Choose 316 when the line has chloride, salt, acidic product, seafood, dairy, meat processing, or stronger cleaning chemicals. For welded construction or stricter corrosion control, ask whether 316L is suitable.
Q: Can a rough air knife surface cause contamination?
A: Yes. Rough surfaces, pits, crevices, and unfinished welds can hold moisture, residue, powder, or cleaning chemical. Later airflow or vibration may move that material back into the process area. This is why cleanable geometry matters as much as the finish number.
Q: Does polishing the air knife after installation help?
A: Only in limited cases. Polishing the outside body may improve wipe-down, but site polishing can damage the outlet slot or change local geometry if done carelessly. The required finish, weld quality, and slot protection should be handled during manufacturing whenever possible.
Q: What information should I send to QXY Machinery before ordering?
A: Send product type, conveyor width, line speed, liquid or particle problem, cleaning method, chemical exposure, required material grade, required Ra value if known, available installation space, air source type, and whether the air knife is in a product, splash, or cleanroom zone.
